IT'S YOUR TERN TO GO ADVENTURE!

Tern Overland

450x500mm - Flat Arctic Tern Window

$609.00
No reviews yet Write a Review
Adding to cart… The item has been added
SKU:
108140
Maximum Purchase:
10 units

Introducing the Arctic Tern Windows by Tern Overland, meticulously crafted to exceed the expectations of avid travelers and Overlanders alike. Engineered for superior performance and durability, these windows are a testament to quality craftsmanship and innovation.

Key Features:

  • Dual-pane European acrylic, meeting strict European ECE & DOT standards.
  • UV Resistant, Genuine G.E. Lucite Perspex with less than 2% clarity loss over 10 years in full sun
  • Maximum Ventilation with full-size window opening
  • Our Classic Strut offers support to open windows awning style & at varying degrees
    • 10 and 35 degrees open for the 300mm size
    • 20, 40, and 60 degrees for all other sizes.
  • Push-Locking Handles for security or for additional ventilation when in the semi-lock position
  • Lightweight Design
  • Durability & Impact Resistance, acrylic is 17x more resistant to impact than glass. Does not shatter!

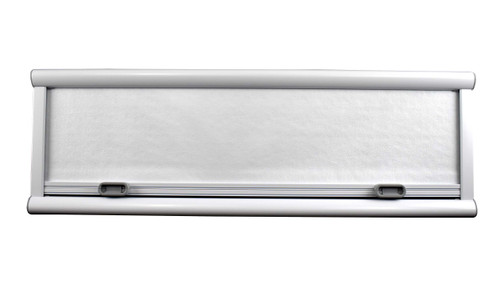

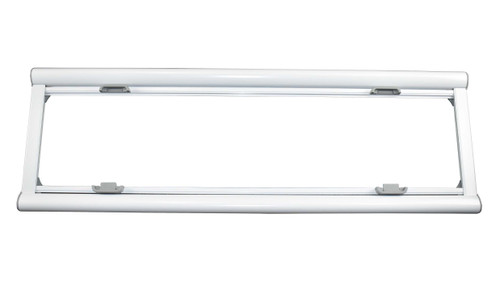

Blind and screen are included with each window and come with a fine mesh insect screen and a blackout blind with reflective exterior. The cover panel contains the retractable fine mesh insect screen on one side & a blackout blind with reflective exterior on the other. These can be used independently, or together for varying combinations of privacy and ventilation. The blind also creates a second dead air space for maximum thermal efficiency in very cold conditions.

Our windows are designed to have excellent thermal insulation to keep the interior of your build comfortable in all seasons by helping regulate temperatures & minimize energy consumption.

Even with all these features, these windows weigh barely 60% of a similarly sized glass window. Lastly, some of these windows can even serve as an emergency exit.

The Arctic Tern Classic Window features a lighter tint with a classic domed exterior, while the Arctic Tern Flat window has a darker tint and features a contemporary flat exterior.

Both Classic & Flat Arctic Tern windows come complete with the blind & screen assembly.

Blind & Screen assemblies come in either a polar white or a sleek black finish.

Our windows are warrantied by Tern Overland LLC for one year against defects in workmanship and materials. We have a complete in-house parts & service department.



Additional features:

  • Heavy duty powder coated aluminum frame
  • Gray acrylic glazing on our Classic & a dark gray for Flat windows.
  • High-quality rubber seals for optimal weatherproofing
  • Easy installation process for hassle-free setup



11 window sizes* to choose from:

  • 300mm x 500mm (12”x20”)
  • 300mm x 700mm (12” x 28”
  • 300mm x 1100mm (12” x 43”)
  • 450mm x 500mm (18” x 20”)
  • 450mm x 610mm (18” x 24”)
  • 450mm x 900mm (18” x 35”)
  • 450mm x 1100mm (18” x 43”)
  • 500mm x 300mm (20” x 12”)
  • 550mm x 700mm (22” x 28”)
  • 550mm x 900mm (22” x 28”)
  • 550mm x 1100mm (22” x 43”)

Cut Hole Radius = 70mm

Four Wall thicknesses are available for all windows:

  • 24-34mm / 15/16" - 1 3/8"- Included in price.
  • 35-44mm / 1 3/8" - 1 3/4"- Included in price.
  • 45–54mm / 1 3/4" - 2 1/8"- Included in price.
  • 64-74mm / 2 1/2" - 2 9/10"- Included in price.



*size conversions are rounded for ease of discussion, for precise sizes please refer to our reference documents*

SIZE WEIGHT BLIND / SCREEN CUT HOLE PRICE
(H x W)mm / in Lbs (H x W)mm / in (H x W)mm / in (USD) Classic / Flat
300x500mm / 11.81"x19.69" 10 375x542mm / 14.76"x21.33" 303x503mm / 11.93"x19.80" $ 509 / $ 542
300x700mm / 11.81"x27.56" 11.1 375x742mm / 14.76"x29.21" 303x703mm / 11.93"x27.68" $ 597 / $ 630
300x1100mm / 11.81"x43.30" 13.2 375x1142mm / 14.76"x44.96" 303x1103mm / 11.93"x43.42" $ 819 / $ 840
450x500mm / 17.72" x19.69" 12.1 525x542mm / 20.67" x 21.33" 453x503mm / 17.83" x 19.80" $ 577 / $ 609
450x610mm / 17.72"x 24.01" 13.5 525x652mm / 20.67"x25.66" 453x613mm / 17.83"x24.13" $ 619 / $ 640
450x900mm / 17.72"x35.43" 17.9 525x942mm / 20.67"x37.08" 453x903mm / 17.83"x35.55" $ 737 / $ 766
450x1100mm / 17.72"x43.30" 21.2 525x1142mm / 20.67"x44.96" 453x1103mm / 17.83"x43.42" $ 875 / $ 913
500x300mm / 19.69"x11.81" 10 575x342mm / 22.64"x13.46" 503x303mm / 19.80"x11.93" $ 509 / $ 542
550x700mm / 21.65"x27.56" 16.6 625x742mm / 24.61"x29.21" 553x703mm / 21.77"x27.68" $ 707 / $ 742
550x900mm / 21.65"x35.43" 19.9 625x942mm / 24.61"x37.08" 553x903mm / 21.77"x35.55" $ 794 / $ 826
550x1100mm / 21.65"x43.30" 23.4 625x1142mm / 24.61"x44.96" 553x1103mm / 21.77"x43.42" $ 946 / $ 986

Fitment of Windows vary from build to build. Download guides from this page or visit our Resources page for measurement and fitment guides.



Arctic Tern Windows

Arctic Tern Windows Installation Guide

Window Installation Video

Download Window Specs

FAQs

Note: Images are for illustration purposes only. Images MAY NOT represent the product listed. Please contact Customer Service with any questions or concerns: (928) 642-3459.

Arctic Tern Product Collection Warranty Policy One Year Product Warranty Arctic Tern products are warranted by Tern Overland to be free of manufacturing defects in materials and workmanship for a period of one year from the date of purchase. All warranty re-turns must have a Returned Merchandise Authorization number on the outside of the packaging. Returned Goods without an RMA will not be accepted. Please call for this number. This warranty is limited solely to the replacement or repair of Arctic Tern branded products. Shipping costs to execute this warranty shall be covered by Tern Overland LLC. Tern Overland LLC accepts no responsibility for consequential damages, including local installation costs.
