Arctic Tern Windows
Our windows are designed for adventurers who demand strength, performance, and reliability—combining cutting-edge materials, innovative design, and rugged construction.
UNMATCHED QUALITY AND DESIGN
Every Arctic Tern Window is built from premium, globally sourced components. Crafted from genuine G.E. Lucite Perspex, our dual-pane European acrylic maintains exceptional clarity even after 10 years of full sun exposure.
A top-tier powder coating ensures enduring protection against the elements, while precise assembly meets strict European ECE regulations and is DOT-certified for North America. Select sizes can even serve as emergency exits.
CLASSIC & FLAT WINDOW OPTIONS
Choose between our Classic and Flat designs to match your build style.
- Classic: Bright, open interior with a raised profile
- Flat: Sleek, modern exterior with dark gray tint for privacy and glare control
Both options include the integrated blind and screen system.

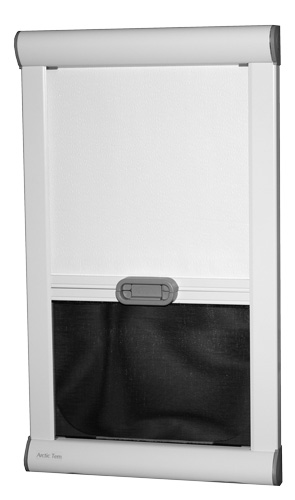

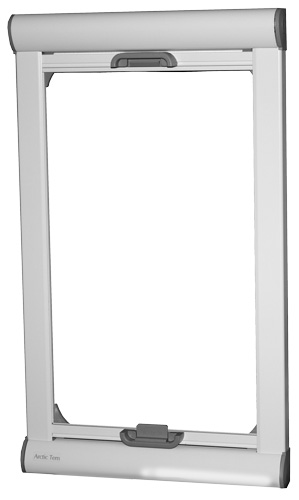

INTEGRATED BLIND & SCREEN SYSTEM
Each window includes a dual-function assembly available in white or black:
- Fine mesh insect screen
- Blackout blind with reflective exterior
These can be used independently or together, creating a second dead air space for enhanced thermal insulation in cold conditions.
PERFORMANCE & DURABILITY
- Dual-pane European acrylic construction
- Lightweight design (~60% the weight of glass)
- High impact resistance (won’t shatter)
- Excellent thermal insulation for all-season comfort
- High-quality rubber seals for weather-tight protection
FLEXIBLE INSTALLATION
- Multiple sizes available to fit a wide range of builds
- Push-button locking handles with secure vent position
- Compatible with multiple wall thicknesses

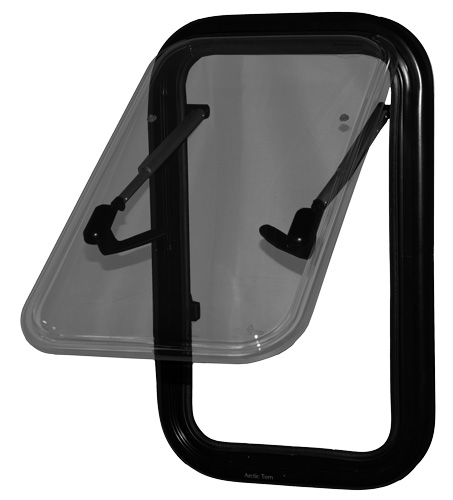

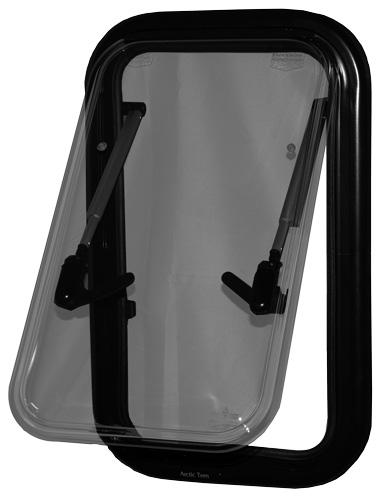

MULTI-POSITION STRUTS
- 10 and 35 degree opening settings for the 300mm size windows
- 20, 40, and 60 degree opening settings for all other size windows
- Cam Lock Struts (available separately) allow opening settings at any angle, and allows window to be opened to 90 degrees
WHY ACRYLIC
- Lightweight: ~50% lighter than glass
- Thermally efficient: Over 4× better insulation
- Impact resistant: 11–15× stronger than glass
- Non-shattering: Safer for off-grid travel
SERVICE & SUPPORT YOU CAN TRUST
One-year warranty. U.S.-based support. Fully stocked replacement parts in Prescott, Arizona.
2026 Tern Overland Classic & Flat Window Dimensions
| Name | Dimension | Orientation* | Lbs | Cut Hole | Overall | Blind/Screen |
| 300x500 | 11 3/4" x 19 5/8" | C & F, WH & AB, 4 IFRs | 10 | 11 7/8" x 19 3/4" | 13" x 20 7/8" | 14 3/4" x 21 3/8" |
| 300x700 | 11 3/4" x 27 1/2" | C & F, WH & AB, 4 IFRs | 11 | 11 7/8" x 27 5/8" | 13" x 28 3/4" | 14 3/4" x 29 1/4" |
| 300x1100 | 11 3/4" x 43 1/4" | C & F, WH & AB, 4 IFRs | 13 | 11 7/8"x 43 3/8" | 13" x 44 1/2" | 14 3/4" x 45" |
| 450x500 | 17 3/4" x 19 5/8" | C & F, WH & AB, 4 IFRs | 12 | 17 7/8" x 19 3/4" | 18 7/8" x 20 7/8" | 20 5/8" x 21 3/8" |
| 450x610 | 17 3/4" x 24" | C & F, WH & AB, 4 IFRs | 13 | 17 7/8" x 24 1/8" | 18 7/8" x 25 1/4" | 20 5/8" x 25 5/8" |
| 450x900 | 17 3/4" x 35 3/8" | C & F, WH & AB, 4 IFRs | 18 | 17 7/8" x 35 1/2" | 18 7/8" x 36 5/8" | 20 5/8" x 37 1/8" |
| 450x1100 | 17 3/4" x 43 1/4" | C & F, WH & AB, 4 IFRs | 21 | 17 7/8" x 43 3/8" | 18 7/8" x 44 1/2" | 20 5/8" x 45" |
| 500x300 | 19 5/8" x 11 3/4" | C & F, WH & AB, 4 IFRs | 10 | 19 3/4" x 11 7/8" | 20 7/8" x 13" | 22 5/8" x 13 1/2" |
| 550x700 | 21 5/8" x 27 1/2" | C & F, WH & AB, 4 IFRs | 17 | 21 3/4" x 27 5/8" | 22 7/8" x 28 3/4" | 24 5/8" x 29 1/4" |
| 550x900 | 21 5/8" x 35 3/8" | C & F, WH & AB, 4 IFRs | 20 | 21 3/4" x 35 1/2" | 22 7/8" x 36 5/8" | 24 5/8" x 37 1/8" |
| 550x1100 | 21 5/8" x 43 1/4" | C & F, WH & AB, 4 IFRs | 23 | 21 3/4" x 43 3/8" | 22 7/8" x 44 1/2" | 24 5/8" x 45" |
| 550x1450 | 21 5/8" x 57 1/8" | C & F, WH & AB, 4 IFRs | 29 | 21 3/4" x 57 1/4" | 22 7/8" x 58 1/4" | 24 5/8" x 58 3/4" |
Note: Images are for illustration purposes only. Images MAY NOT represent the product listed. Please contact Customer Service with any questions or concerns: (928) 642-3459.
